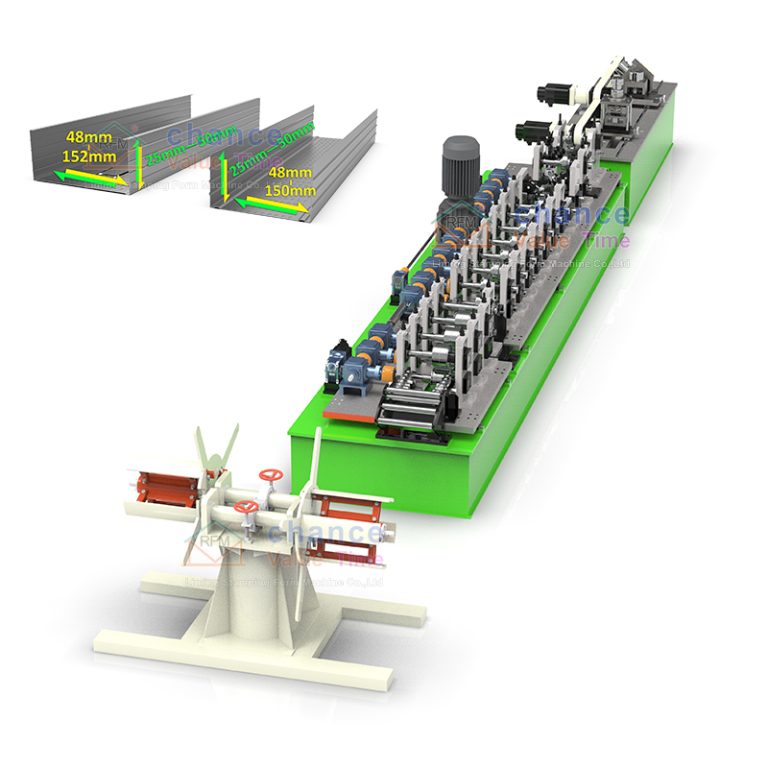

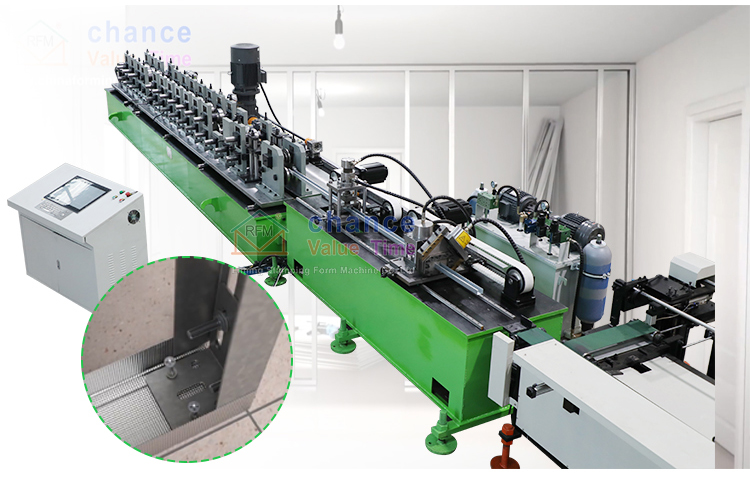

Overview of Stud and Track Roll Forming Machine

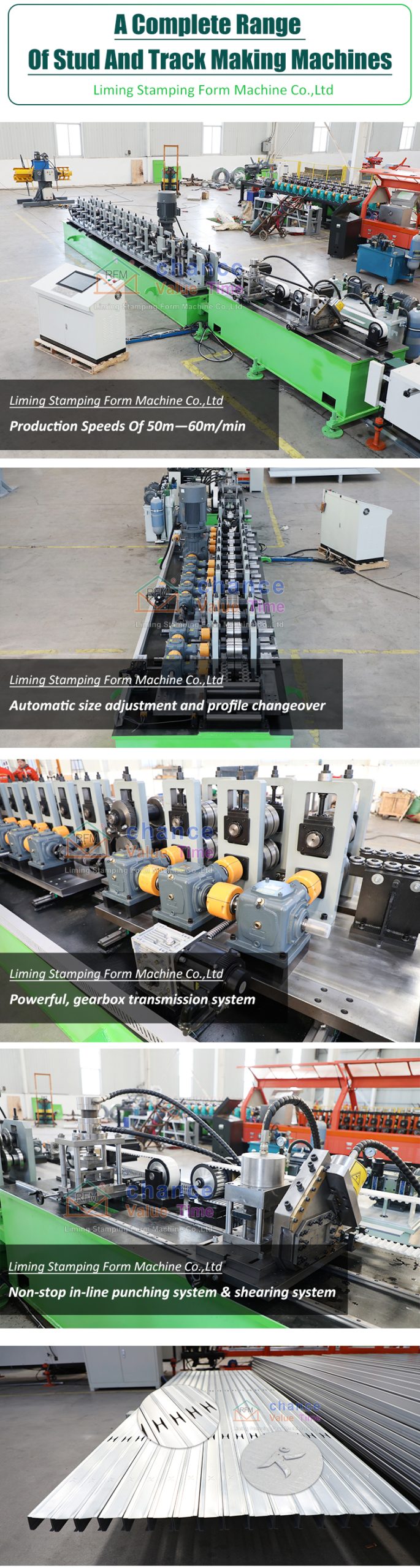

The stud and track roll forming machine is a specialized industrial device designed for the continuous production of metal studs, tracks, and other building components used in structural framing. Utilizing a high-precision roll forming process, the machine feeds metal coils (typically galvanized steel, aluminum, or stainless steel) through a series of adjustable rollers that gradually shape the material into the desired profile. Key features include automated feeding systems, CNC controls for precise adjustments, and high-speed output capabilities (up to 30–60 meters per minute). This machine is widely used in construction, HVAC, and roofing industries to produce lightweight yet durable components such as metal studs, tracks, angles, and channels.
Technical Specifications and Components

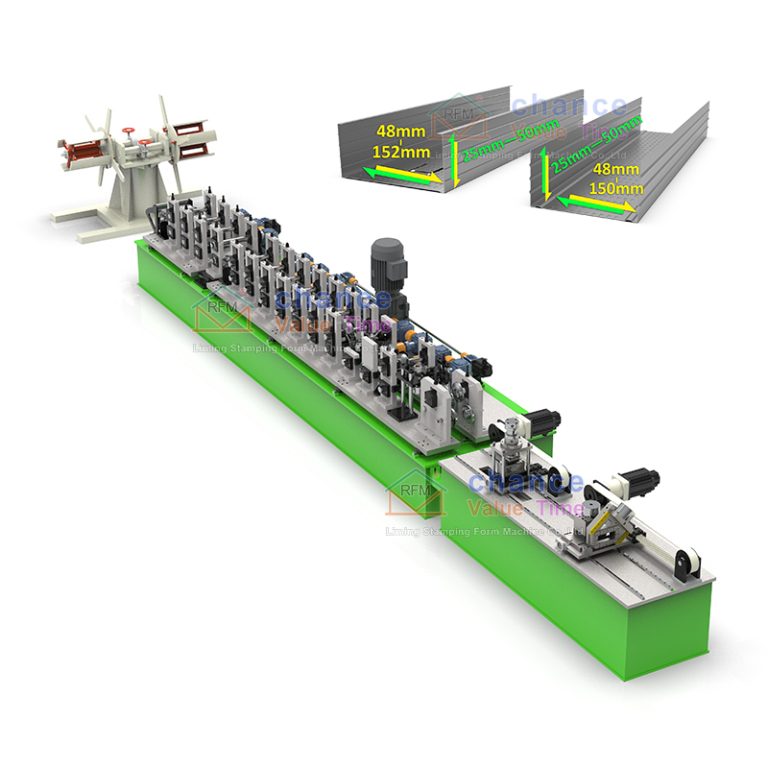

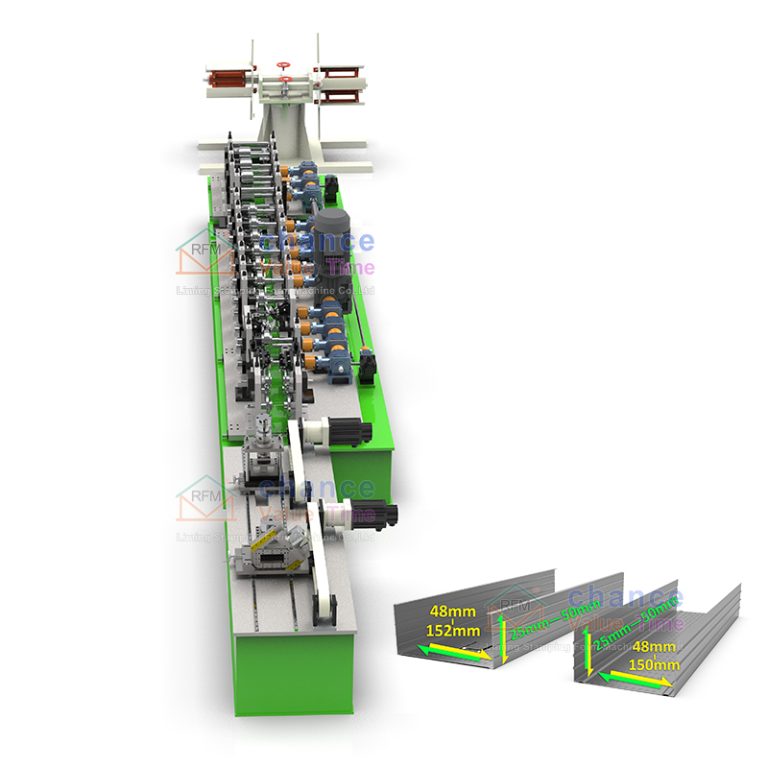

A stud and track roll forming machine is engineered with modular components to ensure flexibility and efficiency. The core system includes:
Uncoiler: Holds and feeds metal coils into the machine.

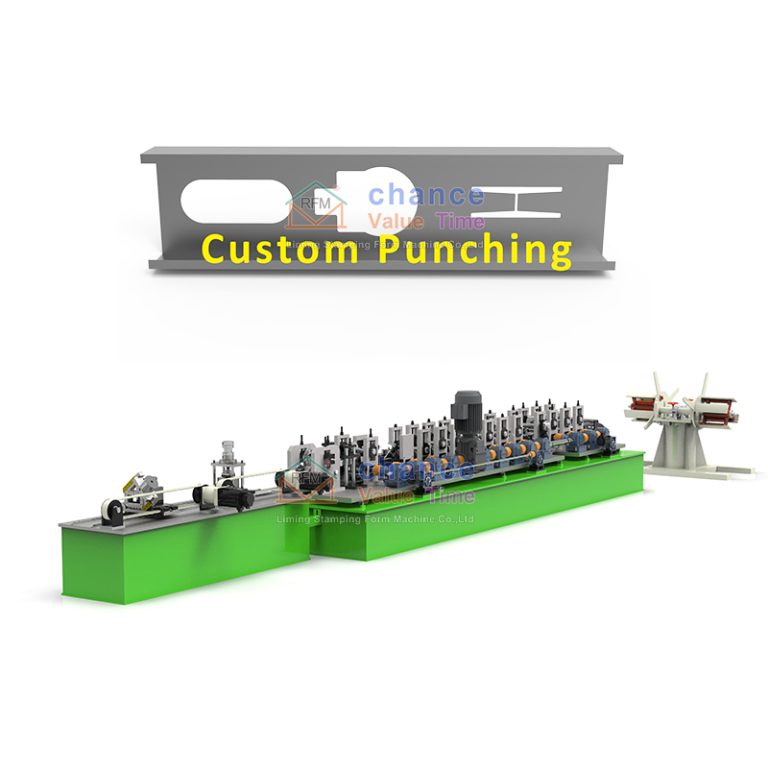

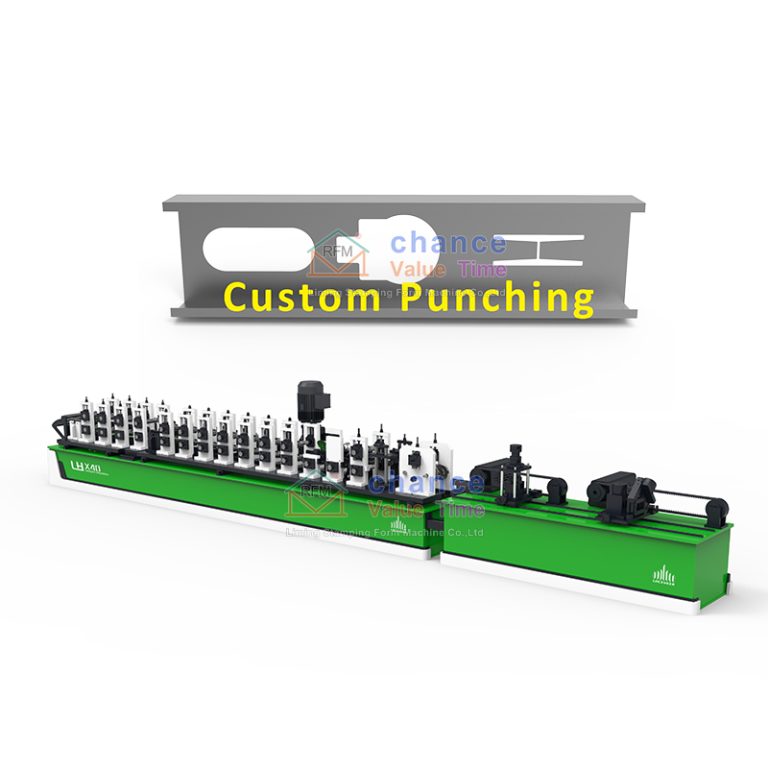

Pre-punching/Notching Station: Adds holes, slots, or notches for fastening.
Roll Forming Stations: Multiple roller dies that incrementally bend the metal into the final shape.
Cutting Unit: Hydraulic or servo-driven blade for precise length cutting.
Control Panel: Touchscreen interface for programming profiles, speed, and material thickness (typically 0.5–3.0 mm).

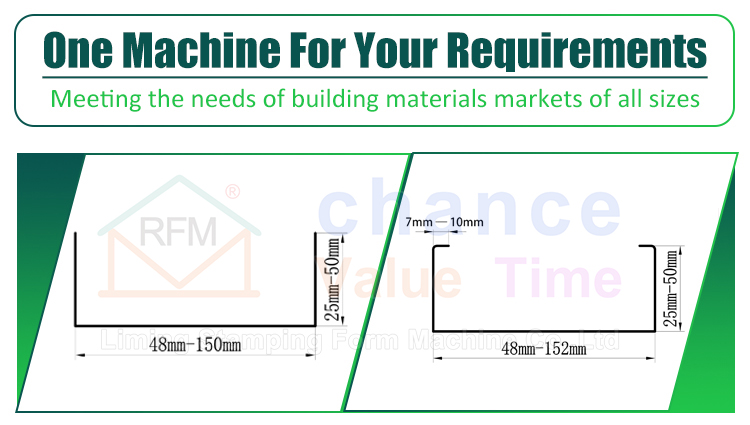

Advanced models integrate laser sensors for real-time alignment and thickness monitoring, ensuring consistent product quality. The machine supports profiles up to 200 mm in height and 150 mm in width, making it ideal for both standard and custom applications.
1. A machine doesn't just provide a few photos to prove what they can produce

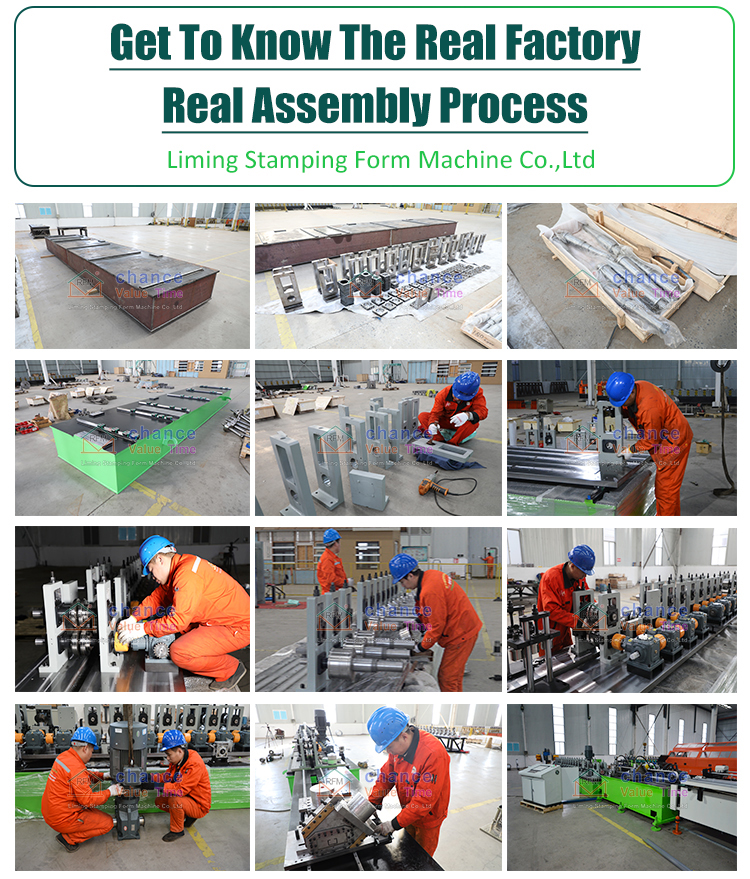

2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life.
The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
At here, it’s all about giving the clients the best quality products.
